Eight-head high-speed production platform
DTF608
Two groups of four heads take continuous output to 18 m²/h.
An eight-head architecture with Ethernet / LAN data transfer delivers greater throughput for continuous, high-volume DTF production.
Print speed
Head architecture
Data interface
DTF608
18 m²/h is the number that defines this platform.
Two groups of four form an eight-head architecture that raises throughput for continuous, high-volume work on the same 60 cm-class platform.
Ethernet / LAN
High-speed output needs data delivery that keeps pace.
Ethernet / LAN provides stable data transfer for continuous high-speed printing, while the 4200 W power configuration supports the higher-throughput platform.
A larger machine, still packed in the common crate.
The machine is approximately 200 mm larger transversely than DTF604. Optimized packing retains the 2470 × 660 × 700 mm printer crate. Final absolute dimensions and weights remain pending confirmation.

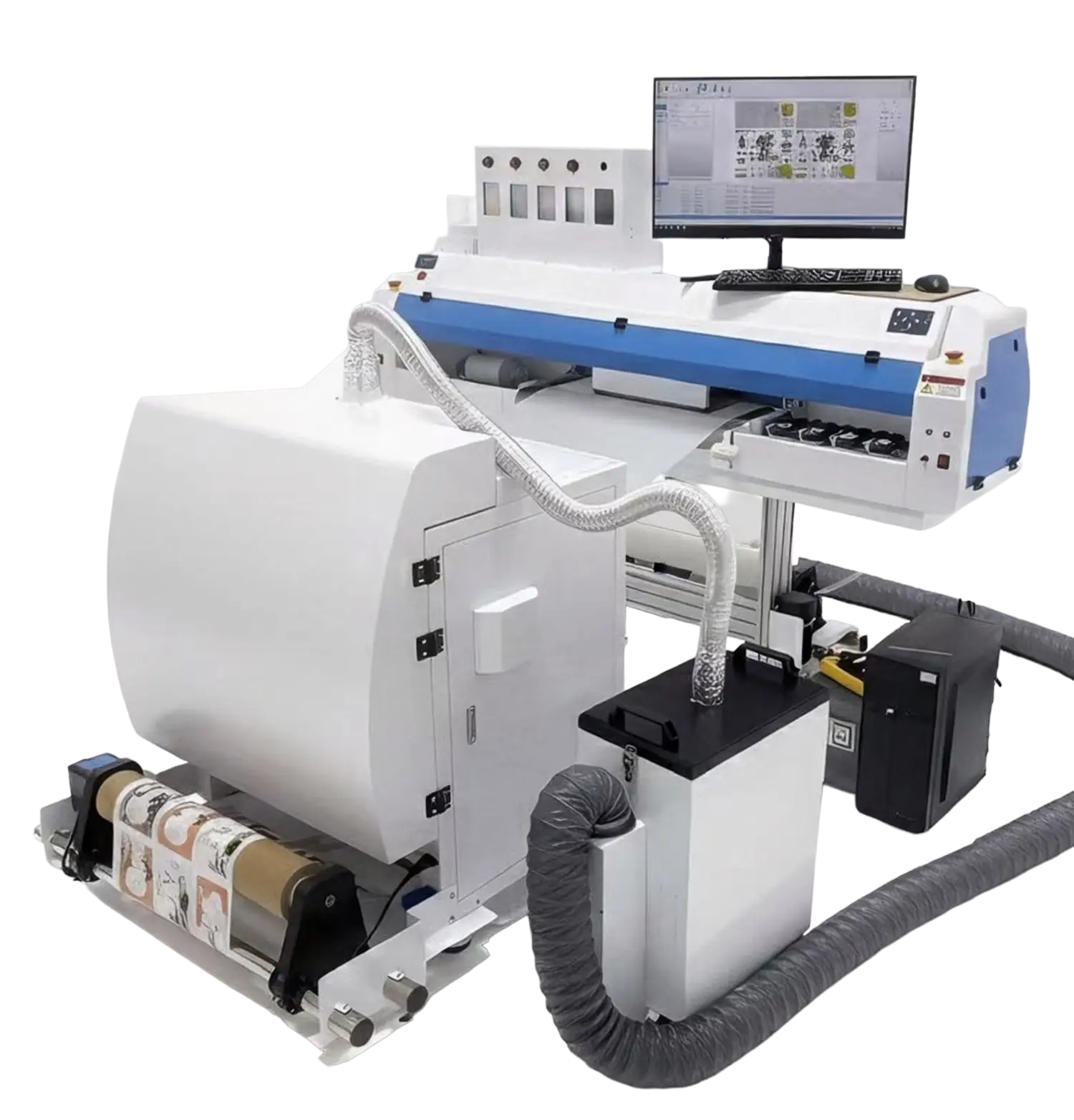

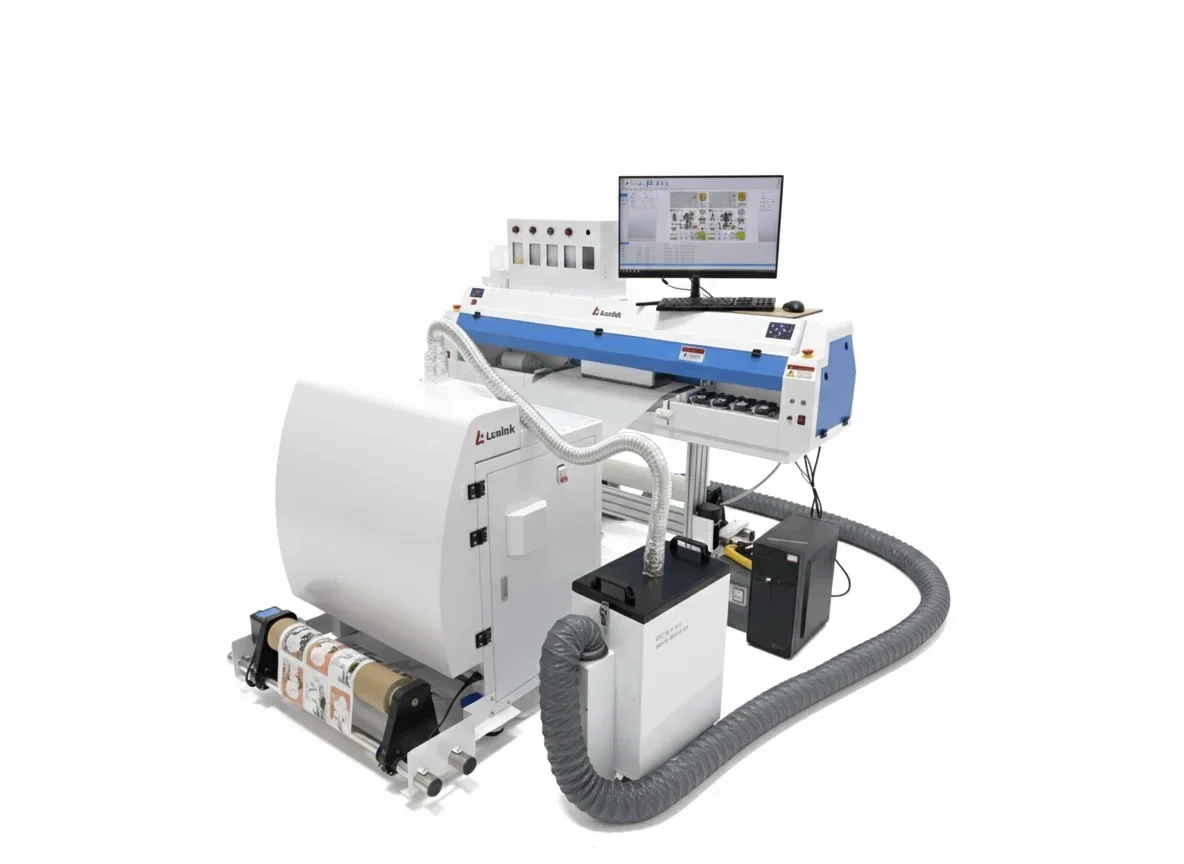

DTF608 · Eight-head system
A complete viewof the eight-head system.
From the machine structure to media travel and take-up, the full system is arranged for continuous high-throughput production.
Continuous production
Continuous production,shown in motion.
Full-system operation, print-carriage movement and media output reveal the production rhythm from three useful viewpoints.
Finished applications
From printed outputto finished apparel.
Finished apparel shows how large graphics, fine lines and varied colors come together in the final application.
Output quality
Color, edges and detailremain clear up close.
A close look at finished surfaces reveals color layers, graphic edges, fine lines and areas of solid color.
DTF608
Specifications
Machine, installation and shipping figures are identified separately.
- Positioning
- High-speed production
- Printheads
- 8 (2 × 4)
- Print speed
- 18 m²/h
- Adhesive printing
- No
- Data interface
- Ethernet / LAN
- System power
- 4200 W
- Machine transverse dimension
- ≈ DTF604 + 200 mmFinal absolute dimensions pending confirmation
- Printhead model
- Epson WF-7610
- Maximum print width
- ≤ 63 cm
- Voltage
- 220 V / 110 V
- Printer crate size
- 2470 × 660 × 700 mmShipping crate dimensions
