Standard DTF production platform
DTF604
The right balance for dependable, continuous production.
A compact 60 cm-class, four-head platform delivering 8 m²/h for reliable day-to-day DTF production.
Print speed
Printheads
Data interface
DTF604
Standard production should be stable and straightforward.
A four-head architecture, 8 m²/h output and CMYK + White configuration support continuous PET DTF transfer production.
Keep white ink ready for continuous production.
A 1200 ml ink supply combines white-ink circulation and magnetic agitation to help reduce settling and support a more continuous production rhythm.
- White-ink circulation
- Magnetic agitation
- Continuous production support
From apparel to everyday custom products.
Suitable for T-shirts, hoodies, caps, bags, tote bags and other PET DTF transfer products.
- 01T-shirts and apparel
- 02Hoodies
- 03Caps
- 04Bags and tote bags
- 05PET DTF transfers
DTF604 · Standard production

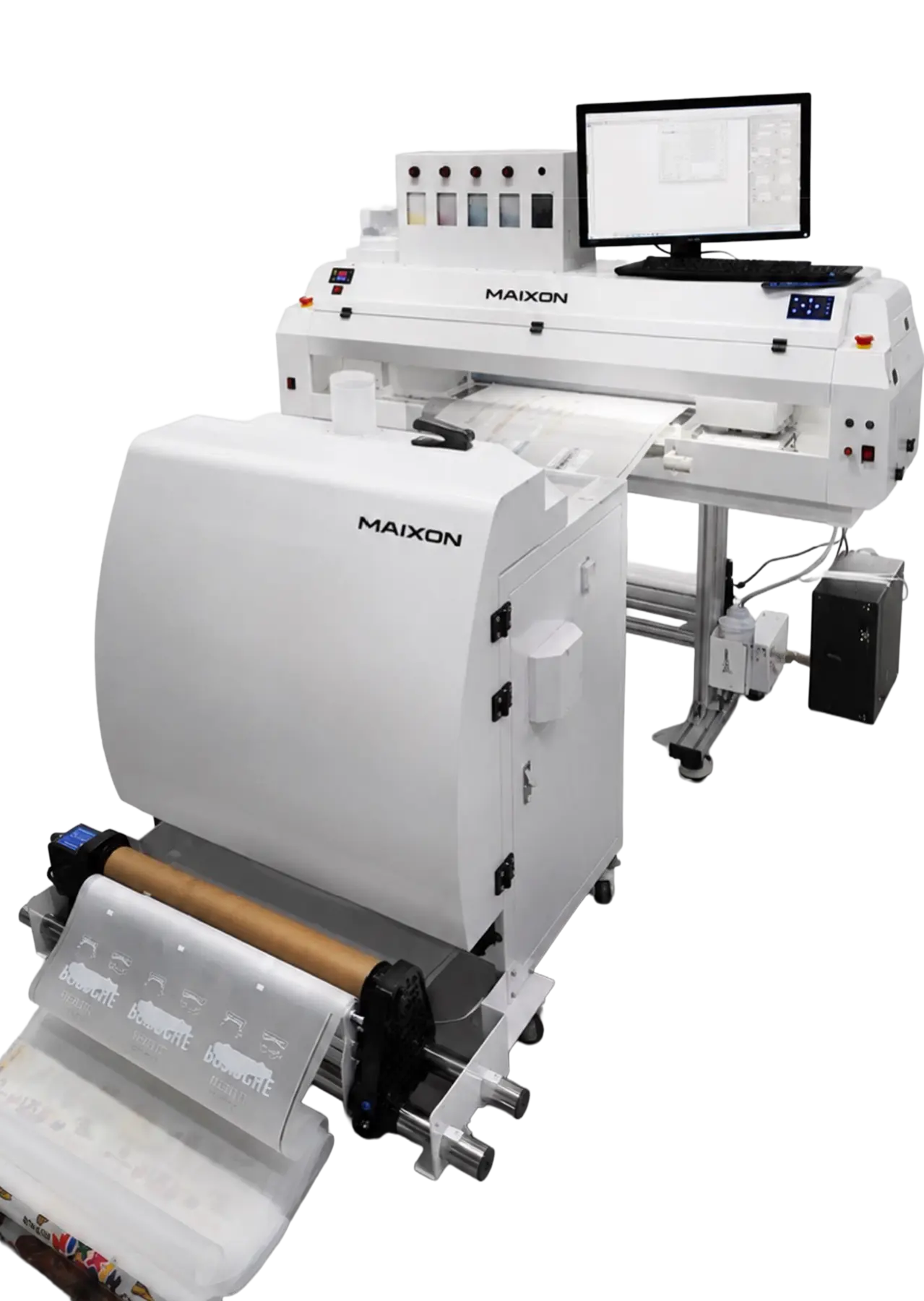

See the complete systemin its production setup.
The complete view makes the relationship between the printer, media path and take-up easy to understand.
Finished applications
From printed outputto finished apparel.
Finished apparel shows how large graphics, fine lines and varied colors come together in the final application.
Output quality
Color, edges and detailremain clear up close.
A close look at finished surfaces reveals color layers, graphic edges, fine lines and areas of solid color.
DTF604
Specifications
Machine, installation and shipping figures are identified separately.
- Positioning
- Standard production
- Printheads
- 4
- Print speed
- 8 m²/h
- Color configuration
- CMYK + White
- Data interface
- USB
- System power
- ≤ 3 kW
- Printer dimensions
- 1650 × 860 × 760 mm
- Dryer dimensions
- 1150 × 800 × 850 mm
- Installed system footprint
- 1900 × 1670 × 1650 mmComplete installed system dimensions
- Printer packed weight
- 195 kg
- Printer packing volume
- 1.14 m³
- Printhead model
- Epson WF-7610
- Maximum print width
- ≤ 63 cm
- Voltage
- 220 V / 110 V
- Printer crate size
- 2470 × 660 × 700 mmShipping crate dimensions
